MONDRAKER SUPERFOXY CARBON R 1 EDITION BIKE - Pro-M Store

Free shipping for orders over 49 € (UE Countries). Free shipping to Extra-Ue countries from 89 €

BICI MONDRAKER SUPERFOXY CARBON R 1 EDITION

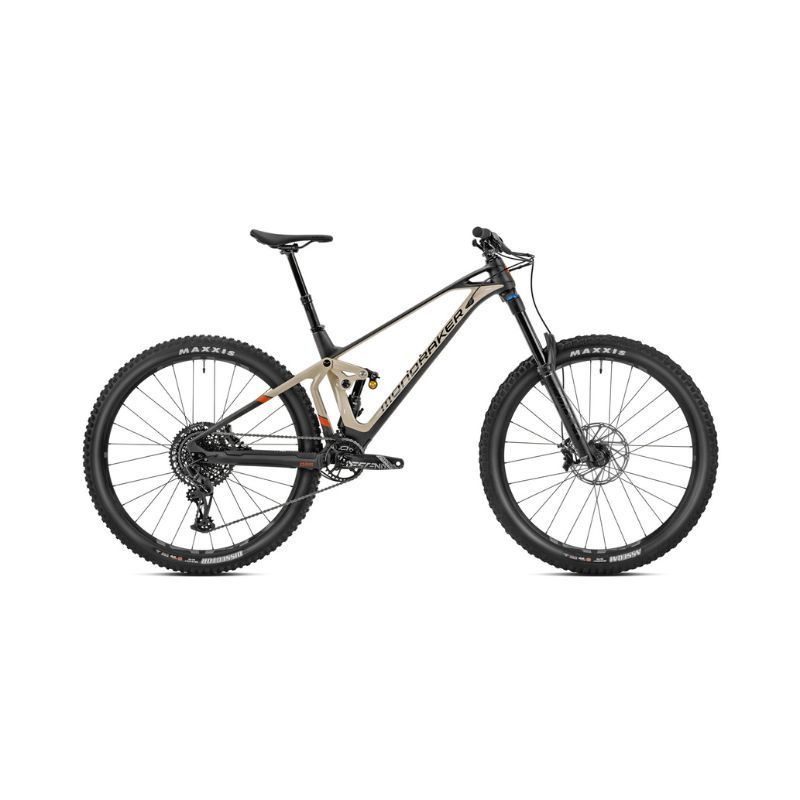

MONDRAKER SUPERFOXY CARBON R 1 EDITION BIKE

Cod. 59156484

from 3,709.48

6,999.01 € Save on 47 %

Free shipping for orders over 49 € (UE Countries). Free shipping to Extra-Ue countries from 89 €


complete your choice

    MONDRAKER SUPERFOXY CARBON R 1 EDITION BIKE

    The Mondraker SUPERFOXY CARBON R mountain bike is the perfect companion for tackling challenging and thrilling trails. With its lightweight and durable carbon frame, this bike offers exceptional performance and superior downhill control. The eye-catching design and attention to detail make it an ideal choice for cyclists seeking the perfect blend of style and functionality.

    MONDRAKER SUPERFOXY CARBON R 1 EDITION BIKE MAIN FEATURES:

    • Carbon frame for increased lightweight and rigidity.
    • Aggressive geometry for optimal handling on technical terrain.
    • High-performance suspension that absorbs shocks and improves traction.
    • High-quality components for a superior riding experience.
    • Eye-catching and modern design that stands out.

    THE BIKE IS DELIVERED PARTIALLY ASSEMBLED BY US*

    TECHNICAL SPECIFICATIONS

    • FRAME: SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit.
    • SIZES: S: 380mm / M: 420mm / L: 470mm / XL: 510mm.
    • SHOCK: Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings.
    • SHOCK ADJUSTMENT: C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E).
    • FORK: Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload.
    • HEADSET: ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°.
    • STEM: ONOFF Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore.
    • HANDLEBAR: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore.
    • GRIPS: ONOFF Desert, 1lock-on, 135mm.
    • SEATPOST: ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm.
    • SEAT: SDG BEL-AIR 3.0, LPU foam, steel rails.
    • FRONT BRAKE: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
    • REAR BRAKE: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.
    • BRAKE LEVERS: Sram Code R, tool-free reach adjust.
    • RIMS: e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes.
    • SPOKES: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers.
    • FRONT HUB: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts.
    • REAR HUB: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub.
    • FRONT TIRE: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
    • REAR TIRE: Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead.
    • CRANKSET: Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm.
    • CHAINRING: 32T, CNC-machined alloy, X-SYNC 2.
    • BOTTOM BRACKET: Sram DUB BSA, sealed bearings, 73mm.
    • CHAIN: Sram NX Eagle, 12s, Powerlock.
    • REAR DERAILLEUR: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1.
    • SHIFTER: Sram Trigger GX Eagle, 12s, X-Actuation 1:1.
    • COGS: Sram XG-1275, 10-52T, 12s.
    • DERAILLEUR HANGER: Mondraker M071.
    • WEIGHT: 15.6 kg.

    *PRO-M STORE OFFERS FREE ASSEMBLY SERVICE FOR THE BIKE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY INSTALLED
