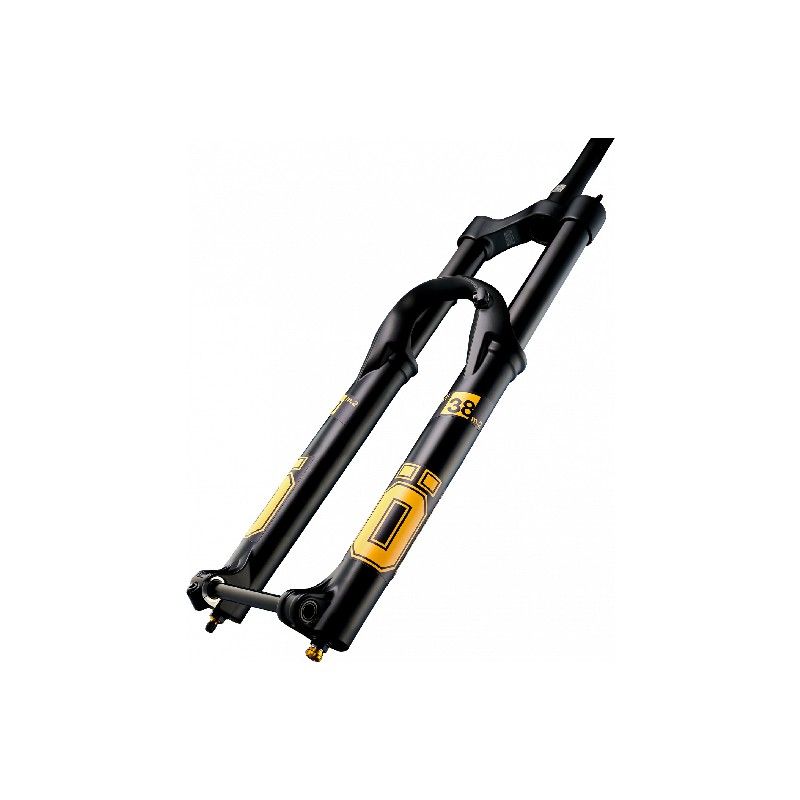

OHLINS AM RFX 38 M2 AIR TTX18 29" 44/160 FORK

Lightweight, progressive Ohlins fork with race-proven TTX18 cartridge made for the most demanding trails. The fork kit features a reworked damping system through an 18mm piston to provide maximum control and traction.
This upgrade conveys high comfort during long, challenging rides while maintaining momentum on trails littered with roots and rocks.
The RXF38 m.2 cartridge allows 15 clicks of low-speed compression and rebound 3 clicks for high-speed compression and a climb mode setting. The three-chamber, double-piston air spring system allows full adjustment of progression from the initial movement to the bottom.
The pneumatic cartridge spring can be changed quickly if needed and the increased tire clearance also allows 27.5X2.8 tires to be mounted allowing the use of larger volume tires which combined with the stiffness of the frame make RXF38 m.2 a perfect choice for e-bikes as well.

OHLINS AM RFX 38 M2 AIR TTX18 29" 44/160 FORK MAIN FEATURES:

• TTX18 damping system.
• Independent cartridge air spring and shock absorber systems.
• Pneumatic spring adjustable to 160/170/180 mm travel.
• Easy-to-adjust three-chamber air spring system.
• 38 mm strut diameter with crown offset of both 44 mm and 51 mm.
• Floating axle design to minimize friction.
• Approved for use with eMTB and available with eMTB-compatible crowns.
• Compatible with maximum tire sizes up to 29 "x2.6".
• Compatible with maximum rotor size up to 220 mm, optimized for 200 mm.
• Measurement from axle to crown: 583 mm at 170 mm travel.
• Weight: from 2320 grams.

ITEM NUMBER

FGMTB 3816 2210
