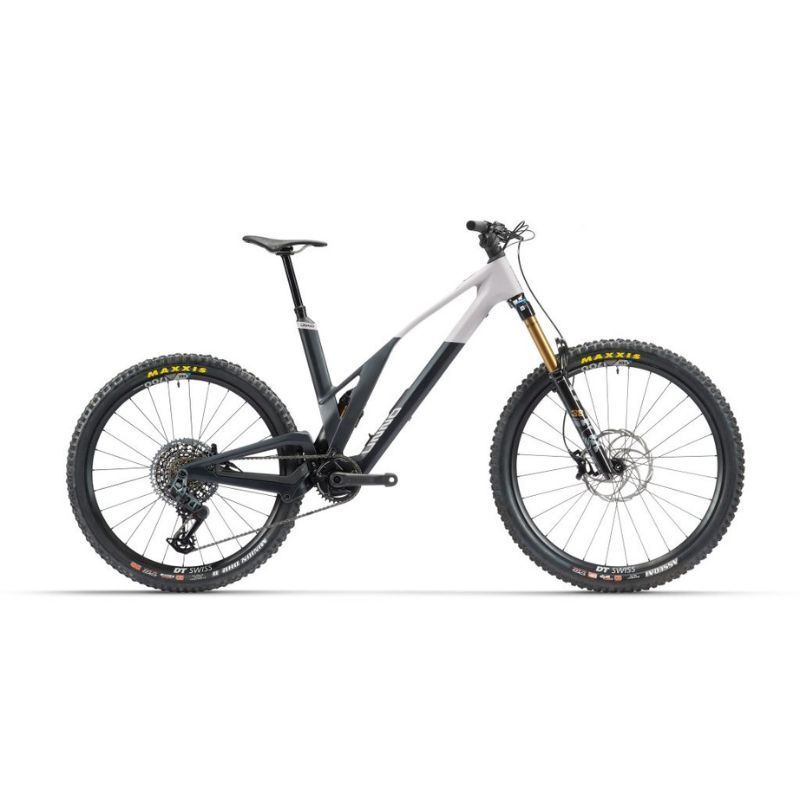

UNNO IKKI RACE BIKE

Imagine the lightest possible e-bike motor, combined with long travel, perfectly integrated into an incredibly compact package. ikki represents the bike that seemed impossible until recently, something achievable only in the dreams of motorcyclists. It looks like an analog bike. And it rides like an analog bike. But even better.

170/160 mm of travel, 360wh battery, and 50nm of torque. Designed and engineered in Barcelona.

TECHNICAL SPECIFICATIONS

• 360wh BATTERY (WEIGHT 1830 gr).
• INTEGRATED DISPLAY: The TQ display is integrated into the frame. Select assistance mode without losing grip.
• MOTOR PLATE: Keeps the motor safe from violent rock strikes.
• HIDDEN CLAMP: Keeps the seat post tightened at just 5Nm torque.
• DOUBLE CROWN BEARINGS: Able to support axial and radial forces up to 40% superior.
• FORK: 170MM TRAVEL OFFSET: 44MM. GRIP 2, KASHIMA COATING, 15X110 AXLE. HSC, LSC, HSR, LSR.
• SHOCK: FOX FLOAT X2 FACTORY 230X65MM (160MM) KASHIMA COATING. F-S. 2POS-ADJ.
• BRAKES: FORMULA CURA 4 4 PISTON CALIPER CURA 4 FRONT. 850MM. CURA 4 REAR, 2000MM. SINTERED PADS. SRAM MATHCMAKER.
• SEATPOST: ONEUP DROPPER 150MM TRAVEL MECHANICAL.
• HANDLEBAR AND STEM: DEUX ENDURO BAR CARBON BARS WITH INTEGRATED STEM WIDTH: 800MM. LENGTH: 40MM RISE 20MM. UPSWEEP: 5°. BACKSWEEP: 7°.
• DERAILLEUR: SRAM GX AXS T-TYPE 12 SPEED.
• DISCS: FORMULA ROTORS 220 / 203MM ENHANCED LATERAL STIFFNESS. ANTI-NOISE DESIGN.
• CASSETTE: SRAM GX T-TYPE 12 SPEED. SILVER.
• CRANKSET: SRAM GX T-TYPE BOOST. 12 SPEED.
• SHIFT LEVERS: SRAM GX AXS T-TYPE 12 SPEED TRIGGER.
• CHAIN: SRAM GX T-TYPE 12 SPEED. 126 LINKS.
• WHEELS: DT SWISS HX1700 29 & 27.5.
• TIRES: MAXXIS ASSEGAI 29X2.50WT 3C MAXXGRIP. EXO+, TR. / MAXXIS MINION DHR II 27.5X2.40WT 3C MAXXGRIP DD TR.
• HEADSET: ACROS IS52 HEADSET.
• GRIPS: LIZARD SKINS WITH UNNO LOGO DANNY MACASKILL EDITION. SINGLE SIDED LOCK-ON. JET BLACK.
• SADDLE: SELLE ITALIA SLR BOOST WITH CRO-MO RAILS. FIBRA-TEK. NEUTRAL DESIGN.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, DERAILLEUR, AND BRAKES ARE ALREADY MOUNTED
