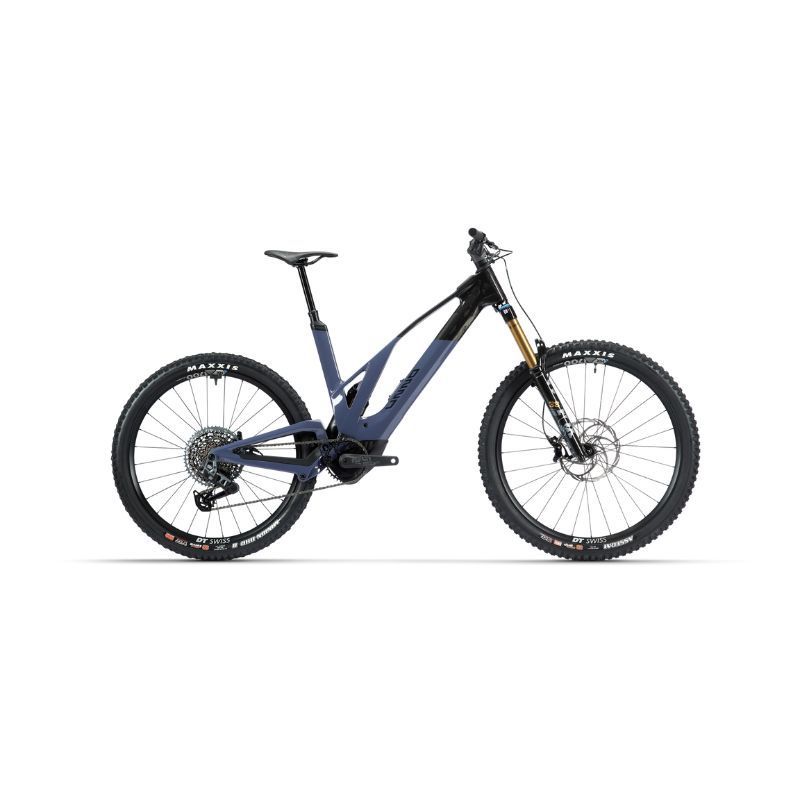

UNNO MITH RACE 2024 BIKE

The UNNO MITH RACE 2024 BIKE was born out of a desire for change and is anything but conventional and ordinary. A beautiful bike both in appearance and to ride. The 750wh battery allows you to pedal for many hours on the trails.
The kinematics include a "virtual pivot" optimized for e-bikes, specially created to take advantage of every millimeter of the 160 available. A 35% (+/-5%) sag setup is recommended.
This bike offers maximum stability and fun, is easy to ride and always offers the ultimate in both comfort and performance. Thanks to EnduroMAX bearings, the bike is always smooth and stiff even on the most difficult terrain.

UNNO MITH RACE 2024 BIKE MAIN FEATURES:

• 170 mm front travel.
• 160 mm rear travel.
• 750wh battery.Mullet setup: for stiffer rear end and better overall handling.
• Hidden saddle collar.
• Integrated chain guide.
• Double crown bearings and EnduroMAX technology.
• Optimized e-bike kinematics: optimized lever ratio for 35% (+/-5%) sag settings.
• High-strength all-carbon bike for maximum stiffness and durability.
• Integrated display.
• Internal cable routing.
• Integrated Deux handlebar.
• Sram Udh universal dropout.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• ENGINE: Bosch Performance CX 750WH BATTERY KIOX 300 DISPLAY.
• FORK: FOX 38 FACTORY 170MM TRAVEL OFFSET: 44MM. GRIP 2, KASHIMA COATING, 15X110 AXLE. HSC, LSC, HSR, LSR.
• SHOCK: FOX FLOAT X2 FACTORY 230X65MM (160MM) KASHIMA COATING. F-S. 2POS-ADJ.
• BRAKES: FORMULA CURA 4. 4 PISTON CALIPER CURA 4 FRONT. 850MM. CURA 4 REAR, 2000MM. SINTERED PADS. SRAM MATHCMAKER.
• SEATPOST: ONEUP DROPPER. 150MM TRAVEL MECHANICAL.
• HANDLEBAR: DEUX ENDURO BAR. CARBON BARS WITH INTEGRATED STEM WIDTH: 800MM. LENGTH: 40MM RISE 20MM. UPSWEEP: 5º. BACKSWEEP: 7º.
• DERAILLEUR: SRAM GX AXS. T-TYPE 12 SPEED.
• ROTOR: FORMULA ROTORS. 220 / 203MM ENHANCED LATERAL STIFFNESS. ANTI-NOISE DESIGN.
• CASSETTE: SRAM GX. T-TYPE 12 SPEED. SILVER.
• CRANKSET: SRAM GX. T-TYPE BOOST. 12 SPEED.
• SHIFT LEVER: SRAM GX AXS. T-TYPE 12 SPEED TRIGGER.
• CHAIN: SRAM GX. T-TYPE 12 SPEED. 126 LINKS.
• WHEELS: DT SWISS. HX1700 29 & 27.5.
• FRONT TIRE: MAXXIS ASSEGAI. 29X2.50WT 3C MAXXGRIP. EXO+, TR.
• REAR TIRE: MAXXIS MINION DHR II. 27.5X2.40WT 3C MAXXGRIP DD TR
• HEADSET: ACROS. IS52 HEADSET.
• GRIPS: LIZARD SKINS. WITH UNNO LOGO DANNY MACASKILL EDITION. SINGLE SIDED LOCK-ON. JET BLACK.
• SADDLE: SELLE ITALIA. SLR BOOST WITH CRO-MO RAILS. FIBRA-TEK. NEUTRAL DESIGN.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
