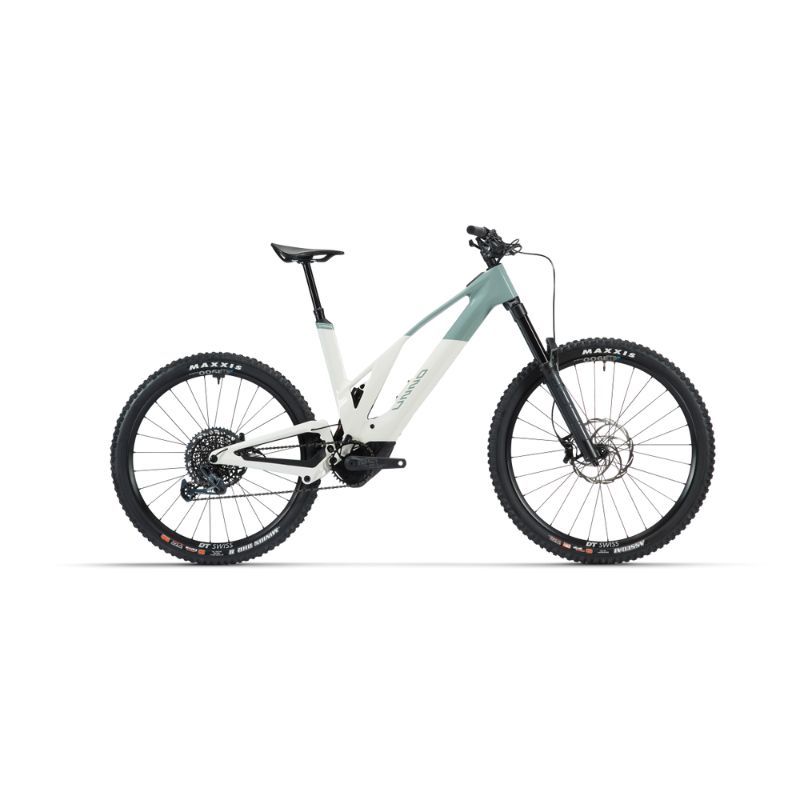

UNNO MITH ELITE BIKE

The UNNO MITH ELITE is an e-mtb, disruptive and aggressive, beautiful both to ride and in appearance. The bike offers 170/160mm travel, 750wh battery and mullet setup and is simple, light and strong.
The virtual pivot, optimized for e-bikes, is specially made to take advantage of every millimeter of the 160 available. A 35% (+/-5%) sag setup is recommended. Use air or helical shocks to your liking!
All resin parts of the frame are made from recycled Nylon in collaboration with Oceanworks.
The Mith Elite is a bike that offers maximum stability and fun and is easy to ride. Thanks to the double row EnduroMAX bearings, the bike is always stiff and smooth even on the most difficult terrain.

UNNO MITH ELITE BIKE MAIN FEATURES:

• Hidden saddle clamp.
• Engine protection system.
• MX wheels for a stiffer rear end and better overall handling.
• Integrated chain guide.
• Double row bearings and EnduroMAX technology.
• Kinematics optimized for e-bikes.
• High strength carbon for maximum rigidity and durability.
• Integrated display.
• Internal cable routing.
• Integrated handlebar.
• Sram UDH dropout.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• ENGINE: BOSCH PERFORMANCE LINE CX 750 WH KIOX 300 DISPLAY
• FORK: ROCKSHOX ZEB SELECT 170MM TRAVEL OFFSET: 44MM. 15X110 BOOST AXLE.
• SHOCK ABSORBER: ROCKSHOX SUPER DELUXE SELECT 230X65MM (160MM) REBOUND ADJUSTMENT.
• BRAKES: FORMULA CURA 4 4 PISTON CALIPER CURA 4 FRONT. 850MM. CURA 4 REAR, 2000MM. SINTERED PADS. SRAM MATHCMAKER.
• SEAT POST: ONEUP DROPPER 150MM TRAVEL MECHANICAL.
• HANDLEBAR: E*THIRTEEN BASE 35MM WIDTH: 800MM.
• DERAILLEUR: SRAM GX EAGLE 12 SPEED DERAILLEUR MECHANICAL. LUNAR.
• DISCS: FORMULA ROTORS 220 / 203MM ENHANCED LATERAL STIFFNESS. ANTI-NOISE DESIGN.
• CASSETTE: SRAM GX. EAGLE TECHNOLOGY 12 SPEED. 10-52.
• CRANKSET: SRAM GX EAGLE. ALLOY BOOST. 12 SPEED. LUNAR. DUB.
• SHIFT SLEEVE: SRAM GX EAGLE 12 SPEED TRIGGER MECHANICAL. LUNAR.
• CHAIN: SRAM GX EAGLE. 12 SPEED 126 LINKS.
• HANDLEBAR STEM: E*THIRTEEN BASE. ALLOY STEM 40MM LENGTH. 35MM CLAMP.
• FRONT TIRE: MAXXIS ASSEGAI 29X2.50WT 3C MAXXGRIP. EXO+, TR.
• REAR TIRE: MAXXIS MINION DHR II 29X2.40WT 3C MAXXGRIP DD TR.
• SADDLE: SELLE ITALIA SLR BOOST WITH CRO-MO RAILS. FIBER-TEK. NEUTRAL DESIGN.
• WHEELS: DT SWISS H 1900 ALLOY WHEELS 29 & 27.5.
• GRIPS: LIZARD SKINS WITH UNNO LOGO DANNY MACASKILL EDITION. SINGLE SIDED LOCK-ON. JET BLACK.
• HEADSET: ACROS IS52 HEADSET.

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
