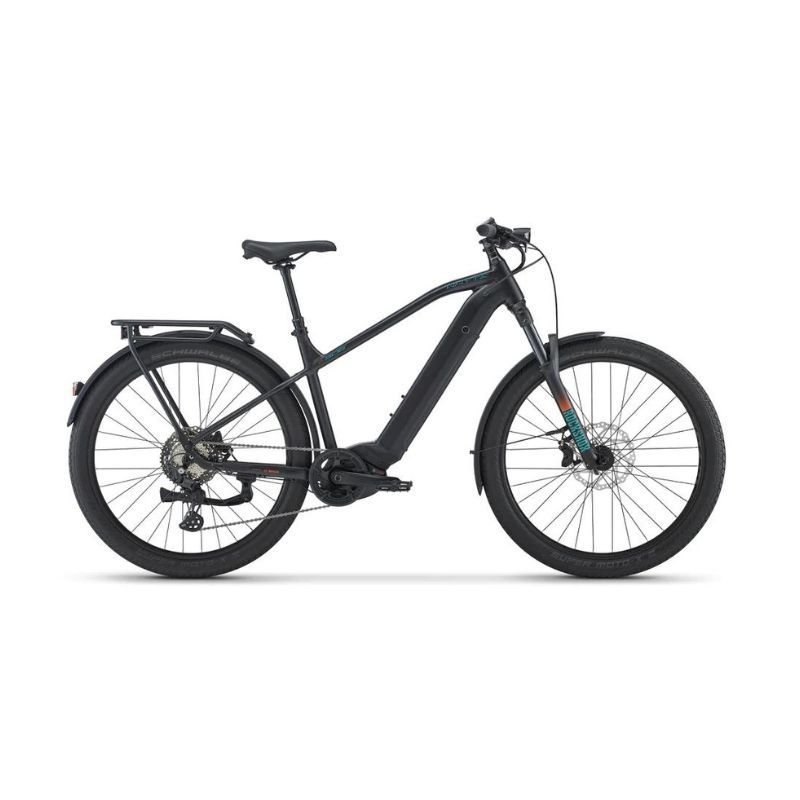

WHYTE E-506 SUV 650B BIKE

The WHYTE E-506 SUV 650B BICYCLE is a durable, capable and versatile e-bike perfect for all your daily needs. The perfect way to replace the ever-increasing costs, congestion and frustration of car use in the city with a healthier, happier, more efficient and more economical way of getting around.
Whyte's Total Geometry handling allows you to tackle all roads with complete peace of mind and carry groceries or fit a child seat. Wide, bulky tires, a fork with proper suspension, an upright stance, and a comfortable chassis not only make the E-506 SUV a pleasure to ride, but also open up a whole world of back roads, bike paths, shortcuts, and hiking trails, where the absence of a car means carefree fun. Super-secure handling and intelligent electric assistance also take the stress out of driving, allowing you to fully appreciate the freedom, awareness and joy of moving that the E-506 SUV can take with it, wherever you take it.
Five different modes of pedaling assistance, from the "cruise for hours" efficiency of Eco to the climbing power of Boost, make pedaling safer, easier, farther and faster right under your control.The integrated and resealable 500Wh fast-charging battery is safe and stylish, but can be easily removed for home charging or road safety.The seat height can be easily lowered/raised by pressing a button on the handlebars.
Shimano's ultra-strong LinkGlide shifter, optimized for e-bikes, makes a quick city getaway as easy as a weekend getaway in the hills.Powerful four-piston hydraulic disc brakes give you total control in all weather conditions and automatically adjust as the pads wear.
The sturdy alloy rack, full fenders and integrated lights powered by the main battery will allow you to combine work and pleasure 24/7.

WHYTE E-506 SUV 650B BIKE MAIN FEATURES:

• Powerful and reliable Bosch Performance Line CX motor of 85 Nm.
• Bosch PowerTube 500Wh Battery.Simple, durable Shimano LinkGlide 1x10 drivetrain.
• Four-piston hydraulic disc brakes for reliable all-weather braking.
• Integrated front and rear lights.Sturdy alloy rear rack to carry everything you need.
• "Dropper" seat post allows the saddle to be raised and lowered while pedaling.
• Complete set of front and rear fenders.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

• DRIVE UNIT: Bosch Performance Line CX (25km/h) 85Nm.
• DISPLAY Bosch Purion Performance Line.
• BATTERY: Bosch Power Tube PT500 Horizontal.
• CHARGER: 2A (100-240V).
• CASSETTE: Shimano CS-LG600, 10 Speed, 11-43.
• FRAME: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts.
• CHAIN: Shimano CN-LG500, 10 Speed.
• FORK: RockShox 35 Silver R 27.5"", 120mm Travel, 37mm Offset, Coil, Fast Black Coating, Adjustable Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite.
• CRANKSET: Whyte, Steel narrow/wide, 160mm, Direct Mount 38T for Bosch Performance Line CX, Black.
• HEADSET: FSA No. 57B Orbit ZS, 1 1/2"" Lower and 1 1/8"" Upper Caged Bearings.
• SEATPOST: Whyte drop.it, 30.9, S 125mm, M/L/XL 150mm Travel, Paddle Remote Lever.
• REAR HUB: Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole. SELLA: Whyte Custom, SUV Comfort sport, Single panel, with moulded rear handle.
• FRONT HUB: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole. MANUBRIO: Whyte 6061 Alloy, 25mm Rise, 31.8mm, 720mm Wide.
• SPOKES: DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples.
• STEM: Whyte Alloy 6061, 60mm Extension.
• RIMS: WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole.
• GRIPS: Whyte Custom Dual Density Lock-on.
• TIRES: Schwalbe, Super Moto-X, 27.5"" x 2.4, Greenguard Puncture Protection
• BRAKES: Tektro Orion, 4-Piston with Sintered Metal Pads, 203mm Disc, Post Mount.
• SHIFT LEVER: Shimano M5130 Deore 10 Speed.
• BRAKE LEVER: Tektro Orion.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALR

ITEM NUMBER

AWE5061SV2-1 (Sz.s - Color: Matte Black With Ocean Burnt Orange) / AWE5062MV2-1 (Sz.M - Color: Matte Black With Ocean Burnt Orange) / AWE5063LV2-1 (Sz.L - Color: Matte Black With Ocean Burnt Orange)
