BICI MONDRAKER RAZE CARBON R

BICI MONDRAKER RAZE CARBON R

Cod. 58167160

from 6,199.00

Free shipping for orders over 49 € (UE Countries). Free shipping to Extra-Ue countries from 89 €


complete your choice

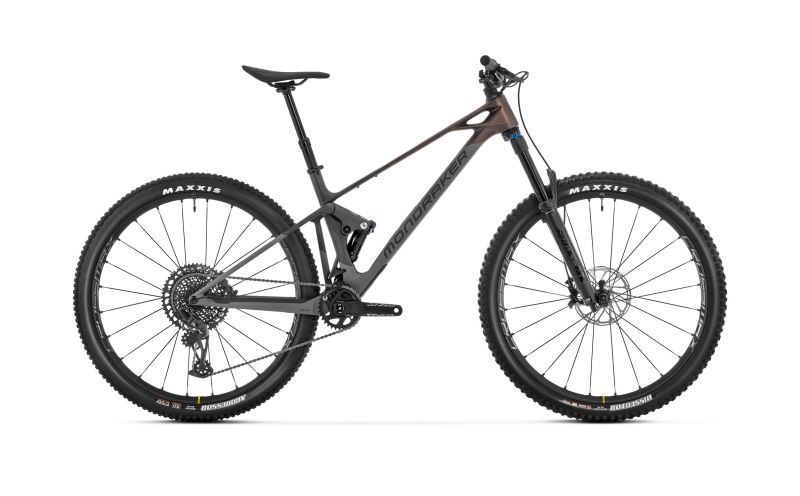

    Mondraker Raze Carbon R Bike

    Frame
    Raze 29 Stealth Air full carbon, Zero suspension system, 130mm travel, forward geometry, carbon one-piece upper link, Boost 12x148mm rear axle, tapered head tube, BSA 73mm bottom bracket, dedicated 1x drivetrain design, internal HHG cable routing, Enduro MAX sealed bearings, shock guard, ISCG 05, custom frame protectors.
    Sizes
    S: 380mm / M: 420mm / L: 450mm / XL: 500mm
    Rear Shock
    Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Upper eyelet with pin mount, lower bushings 30x8mm.
    Shock Settings
    Light compression, light rebound, 0.6 air volume spacer.
    Fork
    Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer, Boost 15x110mm axle, 44mm offset. Settings: 3-position with micro-adjust compression, low-speed rebound, air preload.
    Headset
    Acros custom for 1-1/2" tapered head tube, 40x52x7 angular contact bearings, internal cable routing.
    Stem
    Onoff Sulphur FG 30mm 0°, 6061 forged alloy, 31.8mm clamp.
    Handlebars
    Onoff Sulphur 1.0, double-butted 6061 alloy, rise: 20mm, width: 800mm, 9° back sweep, 5° upsweep, 31.8mm clamp.
    Saddle
    Fizik Vento Argo X5
    Seatpost
    Onoff Pija dropper, internal routing, 31.6mm diameter, 1 remote lever with bearing, size S: 405x95-125mm, size M: 458x120-150mm, size L: 498x140-170mm, size XL: 558x170-200mm.
    Front Brake
    Sram G2 R, 4-piston caliper, Centerline 180mm monoblock rotor, organic pads with steel backing.
    Rear Brake
    Sram G2 R, 4-piston caliper, Centerline 180mm monoblock rotor, organic pads with steel backing.
    Brake Levers
    Sram G2 R, tool-free reach adjustment, lever pivot bushings.
    Rims
    Mavic CrossMax XL S, 29 Boost, 30mm internal width, hookless, tubeless ready, 24 spokes.
    Front Hub
    Mavic, Boost 15x110mm, IS 6-bolt, sealed cartridge bearings, 24 spokes.
    Rear Hub
    Mavic ID360, Boost 12x148mm, IS 6-bolt, sealed cartridge bearings, 24 spokes.
    Tires
    Maxxis Dissector, 29x2.4, EXO protection, tubeless ready.
    Chainring
    34T, direct mount, 3mm offset, CNC-machined alloy.
    Crankset
    Race Face Aeffect, 175mm, 34T, direct mount chainring.
    Bottom Bracket
    Race Face BSA 73mm, threaded.
    Chain
    Sram NX Eagle, 12-speed.
    Cassette
    Sram PG-1230, 11-50T, 12-speed.
    Rear Derailleur
    Sram NX Eagle, long cage, 12-speed.
    Shifter
    Sram NX Eagle, trigger, 12-speed.
    Weight
    13.8 kg (Medium size, no pedals).
