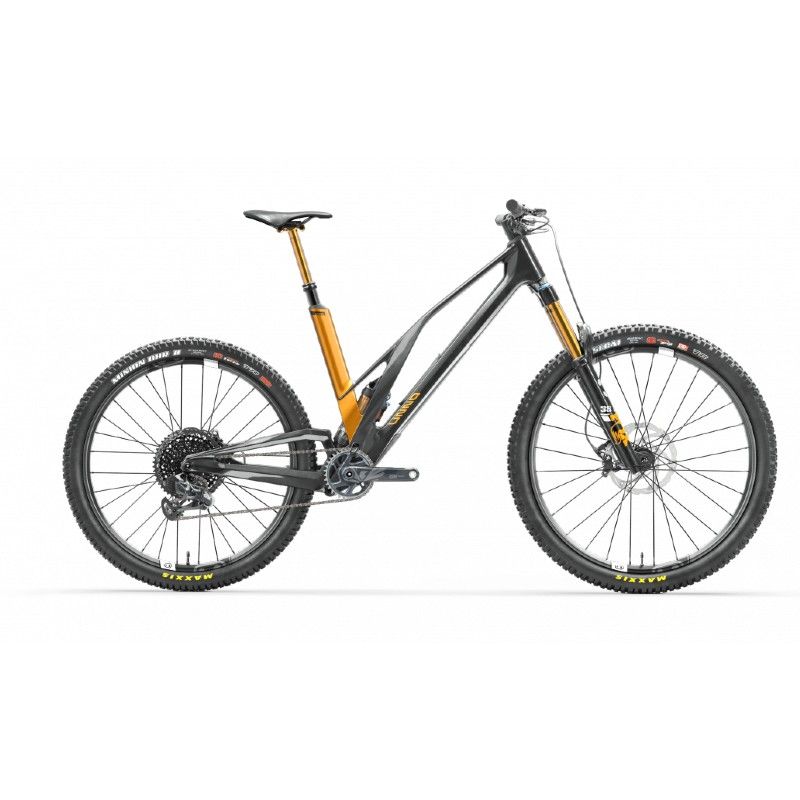

UNNO BURN RACE BIKE

The UNNO BURN RACE is an enduro mtb, perfect for mountain adventures, with EnduroMAX bearings and a high-strength Toray carbon frame that make it solid and agile. S1, S2 and S3 sizes are based on reach. Please note: at the recommended 35% SAG, the geometries become longer, lower and slower than the others! Ask us if you have any doubts.
The bike has a "storage space" on the top tube to carry small personal belongings or tools for repairs.
The bike was made in collaboration with Oceanworks, a company that recycles plastic from the oceans: all resin parts of the frame are made from recycled fishing nets from the oceans.
With the recommended SAG of 35 percent, the virtual pivot was created specifically to take advantage of every single millimeter of the 160 available.

UNNO BURN RACE BIKE MAIN FEATURES:

• "Storage" space on top tube for carrying small personal effects or repair tools.
• Down tube protection.
• Weight: 14.8kg.
• Mullet wheels for a stiffer rear end and better overall handling.Integrated chain guide for smooth riding and no chain drop.
• Double crown enduro max bearings: support radial and axial forces. They last longer. They operate more rigidly.
• Optimized kinematics: high ratio progression from ride 0 to SAG for maximum sensitivity.
• Internal cable routing for a quieter, faster bike.
• Integrated DEUX handlebar.
• Sram UDH dropout available worldwide for non-stop riding.

THE BIKE IS DELIVERED PRE-ASSEMBLED BY US*

TECHNICAL SPECIFICATIONS

FRAMESET

• FORK: forcella Fox 38 Factory (170 mm) Offset: 44mm. Grip 2, Kashima coating, 15x110 axle. HSC, LSC, HSR, LSR.
• SHOCK: Fox Float X2 Factory 230x65mm (160mm) F-s. 2pos-Adj.

WHEELS

• WHEEL SIZE: 29" 27.5".
• TIRES: Maxxis Assegai 29x2.50WT 3C maxxGrip. EXO+, TR. / Maxxis Minion DHR 27.5.

DRIVETRAIN

• CHAIN: E*Thirteen TRS Plus Chain 12 speed. 126 Links.
• CRANKSET: E*Thirteen TRS Carbon 170mm Boost. 34T chainring.

COMPONENTS

• BRAKES: Hydraulic Disc.
• HANDLEBAR: DEUX Enduro Bar Carbon bars with integrated stem Width: 800mm. Length: 40mm Rise 20mm. Upsweep: 5º. Backsweep: 7º.
• HEADSET: Acros IS52 headset.

SIZE CHART

*PRO-M STORE OFFERS FREE BIKE PRE-ASSEMBLY SERVICE: SEATPOST, FORK, REAR DERAILLEUR AND BRAKES ARE ALREADY ASSEMBLED
